# MarkDown 文本解析成 HTML 并生成大纲
作者：过.... (opens new window)，编程导航星球 (opens new window) 编号 30885
markdown转换成html参考：https://blog.csdn.net/weixin_45894305/article/details/106362783?spm=1001.2014.3001.5506
# 渲染后样式跟预期不符
添加css即可，一般直接在父标签上设定一个类名然后给子标签加样式： 可以在github上找一个用：https://github.com/sindresorhus/github-markdown-css
# 转换成html无法通过js操作
这是因为转换后dom加载需要一定的时间，在这个时间内操作会出现 null 问题，解决：
setTimeout(() => {
//要处理转换html后的逻辑
},1)
1
2
3
2
3
一般参数1毫秒即可，最好设大一点
# 生成大纲
# 拿到所有子标签
当dom渲染上去后，我们去获取到用于渲染html文本的标签的所有子标签
document.querySelector(".markdown-body").children
1
# 通过正则表达式提取出h1-h10之间的标签
const regex = /h(10|[1-9])/g;
for (let i = 0; i < document.querySelector(".markdown-body").children.length; i++){
if (htmlContent[i].localName.match(regex)) {
}
}
1
2
3
4
5
6
2
3
4
5
6
# 处理每个标题
大纲一般都有父子关系，我们需要去对每个标题进行父子关系的处理，比如标题 3 在标题 1 的后面，那他就是标题 1 的子标题
const treeData = ref([]);
//是否找到子目录
let isFind = false;
//解析子目录
const setSubDirectory = (directory, level, label) => {
//表示当前的目录层级
const curr = directory
//表示递归的目录层级
const children = directory.children
if (children.length > 0) {
//递归子目录，从最后一个孩子开始
setSubDirectory(directory.children[children.length-1],level,label)
}
//子目录已经归位
if (isFind === true) return;
//当前层级小于等于目录层级，表示找到了目录
if (curr.level < level) {
isFind = true
curr.children.push({ level, label,children: []})
}
}
//解析html，生成目录树
const setTreeDataByHtml = (htmlContent) => {
const regex = /h(10|[1-9])/g;
for (let i = 0; i < htmlContent.length; i++){
if (htmlContent[i].localName.match(regex)) {
const level = parseInt(htmlContent[i].localName.replace("h", ""))
const label = htmlContent[i].innerText
//不需要找子目录
if (treeData.value.length === 0 || treeData.value[treeData.value.length - 1].level >= level) {
treeData.value.push({ label, level,children: []})
} else {
isFind = false
setSubDirectory(treeData.value[treeData.value.length - 1],level,label)
}
}
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
细节：我们将标题分为两类，一种是直接可以用作父标题，一种则是需要添加在父标题中的子标题 如果当前标题的层级小于等于数据中最后一个父标题的层级，那么他就是父标题，直接添加到数组中即可 子标题通过递归的方式，先找到最底层的标题，依次往上寻找，直到找到合适的位置即可 合适的位置：子标题的层级大于父标题的层级，这里我们用level来表示
# 解析生成大纲
通过 element-plus 中的 tree组件库来实现

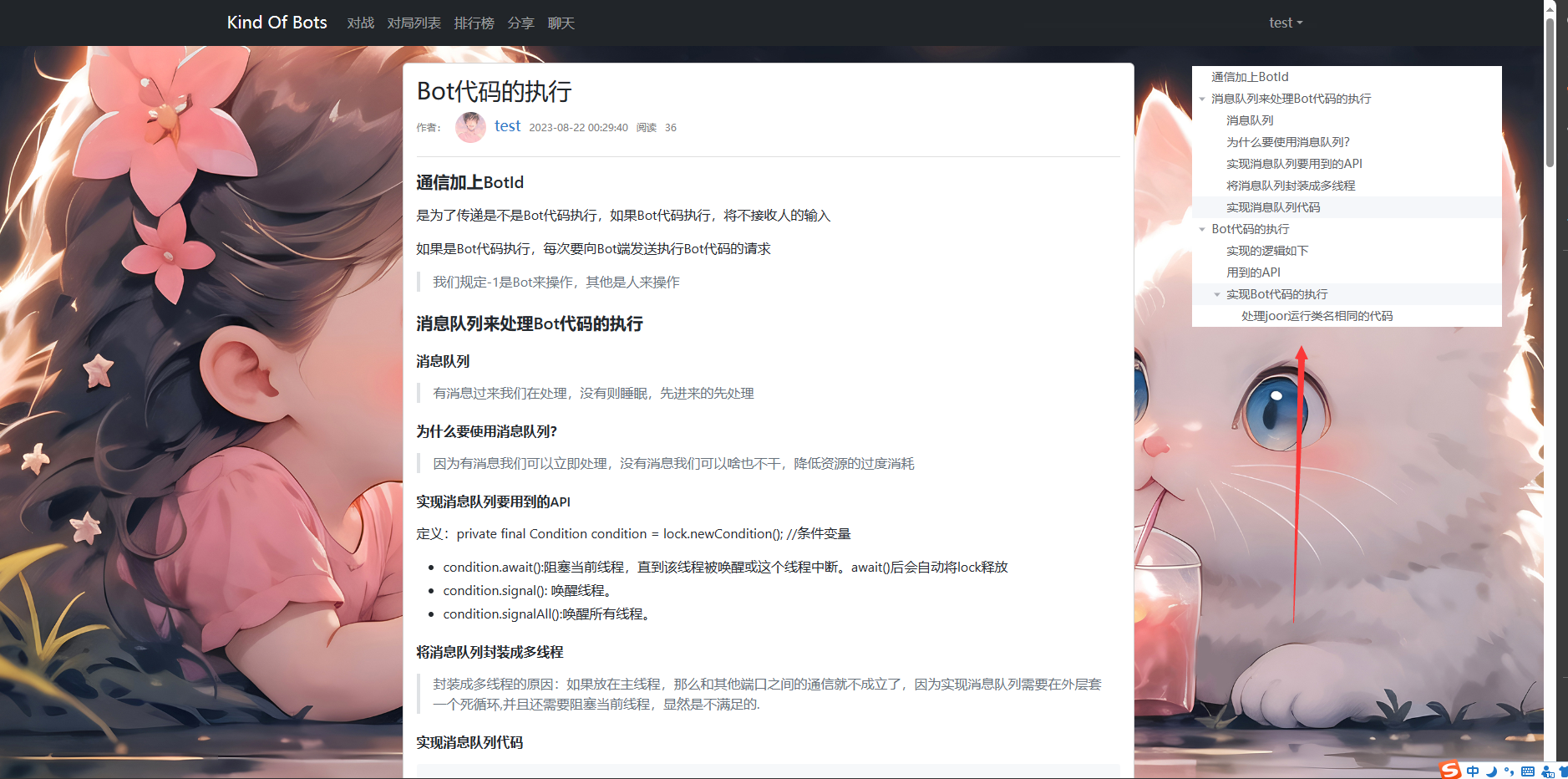

# 测试结果
# 完整代码
tips: 复制过去记得改，是拿以前项目写的
文章详情页，在此引用大纲页面，为 ArticleTree，调用 ArticleTree 里的函数生成大纲的函数在82行
<template>
<div class="container view">
<div class="card">
<div class="card-body">
<h3>{{ share.title }}</h3>
<span class="author_descibe" style="margin-left: 0px">作者：</span>
<router-link class="ToOpenShare" :to="{ name: 'home' }">
<img :src="share.authorPhoto" alt="" />
<span class="author" style="font-size: 18px; margin-left: 10px"
>{{ share.author }}
</span>
</router-link>
<span class="createtime">{{ share.createtime }}</span>
<span class="reading_descibe">阅读</span>
<span class="reading">{{ share.reading }}</span>
<hr />
<div v-html="share.content" class="markdown-body"></div>
</div>
</div>
<hr />
<CommentView :shareId="route.params.shareId" />
</div>
<ArticleTree ref="ArticleTreeRef"/>
</template>
<script>
import $ from "jquery";
import { useRoute } from "vue-router";
import { useStore } from "vuex";
import { reactive, onMounted,ref } from "vue";
import CommentView from "@/views/share/comment/CommentView.vue";
import { marked } from 'marked';
import ArticleTree from "./ArticleTree.vue";
export default {
components: {
CommentView,ArticleTree
},
setup() {
const store = useStore();
const route = useRoute();
const ArticleTreeRef = ref(null)
const share = reactive({
title: "",
createtime: "",
content: "",
reading: null,
authorPhoto: "",
author: "",
});
onMounted(() => {
const link = document.createElement('link')
link.type = 'text/css'
link.rel = 'stylesheet'
link.href = 'https://cdn.bootcss.com/github-markdown-css/2.10.0/github-markdown.min.css'
document.head.appendChild(link)
});
//打开某一分享页面就调用
const getShare = () => {
$.ajax({
url: "https://app5608.acapp.acwing.com.cn/api/get/share/",
type: "get",
data: {
userId: store.state.user.id,
shareId: route.params.shareId,
},
headers: {
Authorization: "Bearer " + store.state.user.token,
},
success(resp) {
// eslint-disable-next-line no-empty
if (resp.error_message === "successfully") {
share.title = resp.share.title;
share.createtime = resp.share.createTime;
share.content = marked(resp.share.content)
setTimeout(() => {
ArticleTreeRef.value.setTreeDataByHtml(document.querySelector(".markdown-body").children)
},1)
share.reading = resp.share.reading;
share.authorPhoto = resp.authorPhoto;
share.author = resp.author;
}
},
error() {},
});
};
getShare();
return {
share,
route,
ArticleTreeRef,
};
},
};
</script>
<style scoped>
.view {
margin-top: 20px;
}
.container {
max-width: 900px;
}
hr {
color: gray;
}
img {
border-radius: 50%;
width: 4vh;
height: 4vh;
margin-left: 10px;
line-height: 15px;
}
.author_descibe,
.createtime,
.reading_descibe,
.reading {
font-size: 12px;
color: gray;
margin-left: 10px;
}
.ToOpenShare {
color: rgb(51, 122, 199);
text-decoration: none;
line-height: 30px;
font-size: 16px;
}
.ToOpenShare:hover {
color: rgb(35, 82, 124);
text-decoration: underline;
}
</style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
ArticleTree
<!-- 将文章目录以树的形式展示 -->
<template>
<el-tree :data="treeData" :expand-on-click-node="false" class="tree"></el-tree>
</template>
<script setup>
import { ref,defineExpose } from "vue";
const treeData = ref([]);
//是否找到子目录
let isFind = false;
//解析子目录
const setSubDirectory = (directory, level, label) => {
//表示当前的目录层级
const curr = directory
//表示递归的目录层级
const children = directory.children
if (children.length > 0) {
//递归子目录，同层级下，数组下标在其范围即可
setSubDirectory(directory.children[children.length-1],level,label)
}
//子目录已经归位
if (isFind === true) return;
//当前层级小于等于目录层级，表示找到了目录
if (curr.level < level) {
isFind = true
curr.children.push({ level, label,children: []})
}
}
//解析html，生成目录树
const setTreeDataByHtml = (htmlContent) => {
const regex = /h(10|[1-9])/g;
for (let i = 0; i < htmlContent.length; i++){
if (htmlContent[i].localName.match(regex)) {
const level = parseInt(htmlContent[i].localName.replace("h", ""))
const label = htmlContent[i].innerText
//不需要找子目录
if (treeData.value.length === 0 || treeData.value[treeData.value.length - 1].level >= level) {
treeData.value.push({ label, level,children: []})
} else {
isFind = false
setSubDirectory(treeData.value[treeData.value.length - 1],level,label)
}
}
}
}
defineExpose({
setTreeDataByHtml
})
</script>
<style scoped>
.tree{
width: 20%;
position: fixed;
top: 80px; /* 从页面顶部的距离 */
right: 50px; /* 从页面左侧的距离 */
}
</style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
# 点击目录导航到对应标题位置
只要获取到dom实例，通过scrollIntoView函数即可完成 示例：
element.scrollIntoView({
behavior: "instant",
block: "center",
});
1
2
3
4
2
3
4
# 当滚动条滚动到标题位置，设置目录里标题高亮
通过IntersectionObserver实例来做，当监听的dom出现在视图区域中，会触发回调函数，从而来设置高亮 示例：
// 创建 Intersection Observer 实例
const observer = new IntersectionObserver((entries) => {
entries.forEach((entry) => {
if (entry.isIntersecting) {
// 目标元素进入可视区域
treeRef.value.setCurrentKey(entry.target.id)
}
});
}, { threshold: 0 });
//将要监听的目标元素加入Observer中
observer.observe(htmlContent[i])
1
2
3
4
5
6
7
8
9
10
11
2
3
4
5
6
7
8
9
10
11
htmlContent[i] 代表你要监听目标元素的dom
